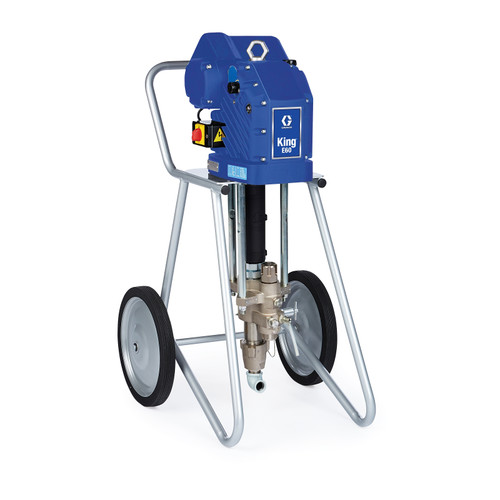

The Graco King E-series Electric Airless Sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.
UPC Product:
769946174489
Family Code:
FAMXTM
Country of Origin:
US
Unit of Measure:
EA
Height:
62 IN
| 157.480 CM
Length:
39 IN
| 99.060 CM
Width:
30.25 IN
| 76.835 CM
Volume:
42.288 FT3
| 1.197 M3
Shipping Weight:
295 LBS
| 133.810 KG
Technical Specifications
| Compatible Material |
Protective Coating
|
| Fluid Inlet Size (in) |
1
|
| Fluid Inlet Size (mm) |
25.4
|
| Fluid Inlet Thread Type |
NPT
|
| Fluid Outlet Size (in) |
1/2, 3/8
|
| Fluid Outlet Size (mm) |
12.7;9.525
|
| Fluid Outlet Thread Type |
NPT
|
| Frame Configuration |
Lightweight Cart
|
| Hose Inlet Diameter (cm) |
0.9525
|
| Hose Inlet Diameter (in) |
3/8
|
| Hose Inlet Diameter (mm) |
9.525
|
| Inlet Paint Strainer |
8 Mesh, 16 Mesh
|
| Maximum Flow Rate (GPM) |
0.7
|
| Maximum Flow Rate (L/min) |
2.6
|
| Maximum Hose Length (ft) |
210
|
| Maximum Hose Length (m) |
64
|
| Maximum Sound Pressure Level (dB(A)) |
77
|
| Maximum Tip Size (in) |
0.021
|
| Maximum Working Pressure (psi) |
6000
|
| Maximum Working Pressure (kPa) |
41500
|
| Power Source |
Electric
|
| Maximum Working Pressure (MPa) |
42
|
| Pressure Control Type |
Electric Control Knob
|
| Model |
King
|
| Maximum Working Pressure (bar) |
415
|
| Weight (kg) |
134
|
| Weight (lb) |
295
|
| Series |
E60
|
| Pump Type |
Pneumatic Piston Pump
|
| Type |
Airless Sprayer
|
| Phase |
1
|
| Motor Type |
Electric, Hazardous Locations
|
| Wetted Material |
Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum
|
| Maximum Fluid Working Pressure (psi) |
6000
|
| Outlet Paint Filter |
60 Mesh
|
| Pump Sleeve Material |
Hard Chrome, Stainless Steel
|
| Minimum Generator Power (kW) |
5
|
| Frequency (Hz) |
50/60
|
| Pump Rod Type |
Chromex
|
| Minimum Generator Power (W) |
5000
|
| Number of Guns |
1-2
|
| Amperage (A) |
120V/25A, 240V/15A
|
| Gun Included |
0
|
| Gun Model |
No Applicator
|
| Pump Ratio |
60:1 (6000 psi)
|
| Product Type |
Single Leg
|
| Material Application |
Protective Coatings, Revêtements de protection, Recubrimientos protectores, Schutzbeschichtungen, Beschermende coatings, Rivestimenti protettivi, 保护性涂层, Protective coatings, Protective Coatings
|
| Control Type |
Pressure Control Knob
|
| Lower Configuration |
Integrated Filter
|
| Maximum Operating Temperature (°C) |
50
|
| Maximum Operating Temperature (°F) |
120
|
| Fluid Outlet Thread Gender |
Male
|
| Fluid Inlet Thread Gender |
Male
|
| Lower Type |
115cc Xtreme Duty Lower
|
| Minimum Hose Length (ft) |
50
|
| Minimum Hose Inside Diameter (in) |
0.375
|
| Minimum Operating Temperature (°C) |
-5
|
| Minimum Operating Temperature (°F) |
23
|
| Maximum Continuous Cycle Rate (CPM) |
44
|
| Approved for Hazardous Locations |
Yes
|
