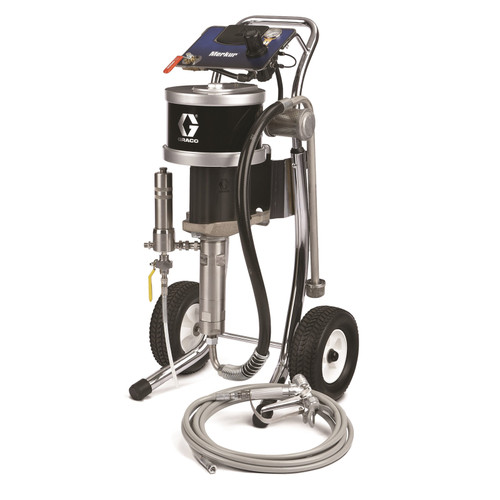

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
UPC Product:
633955432659
Family Code:
FAMXTM
Country of Origin:
US
Unit of Measure:
EA
Height:
40.8 IN
| 103.632 CM
Length:
18 IN
| 45.720 CM
Width:
24 IN
| 60.960 CM
Volume:
10.2 FT3
| 0.289 M3
Shipping Weight:
128 LBS
| 58.060 KG
Technical Specifications
| Compatible Material |
Protective Coating
|
| Compatible Replacement Pump |
W36DAS
|
| Convertible |
Non-Convertible
|
| Fluid Inlet Size (in) |
3/4
|
| Fluid Inlet Size (mm) |
19.05
|
| Fluid Inlet Thread Type |
NPT
|
| Fluid Outlet Size (in) |
3/8, 1/4
|
| Fluid Outlet Size (mm) |
9.525;6.35
|
| Fluid Outlet Thread Type |
NPT
|
| Frame Configuration |
Cart Mount
|
| Hose Inlet Diameter (cm) |
0.635
|
| Hose Inlet Diameter (in) |
1/4
|
| Hose Inlet Diameter (mm) |
6.35
|
| Includes |
XTR-5 Spray Gun, Pistola pulverizadora XTR-5, Pistolet pulvérisateur XTR-5 , Pistola XTR-5, XTR-5 Spritzpistole, XTR-5 Spuitpistool, XTR-5 Spray Gun, 512 XHD Tip, Punta 512 XHD, buse 512 XHD , Boquilla 512 XHD, 512 XHD-Düse, 512 XHD tip, 512 XHD Tip, Fluid Hose, Manguera para líquido, flexible à fluide , Manguera de fluido, Materialschlauch, vloeistofslang, Fluid Hose, Fluid Filter, Filtro para líquido, filtre de fluide, Filtro de fluido, Materialfilter, vloeistoffilter, Fluid Filter
|
| Inlet Paint Strainer |
8 Mesh, 16 Mesh
|
| Maximum Flow Rate (GPM) |
1.6
|
| Maximum Flow Rate (L/min) |
6
|
| Maximum Sound Pressure Level (dB(A)) |
68.9
|
| Maximum Tip Size (in) |
0.029
|
| Maximum Working Pressure (psi) |
3600
|
| Maximum Working Pressure (kPa) |
24800
|
| Power Source |
Air
|
| Maximum Working Pressure (MPa) |
24.8
|
| Pressure Control Type |
Air Regulator
|
| Model |
Merkur
|
| Maximum Working Pressure (bar) |
248
|
| Weight (kg) |
52
|
| Weight (lb) |
114
|
| Series |
Standard
|
| Pump Type |
Pneumatic Piston Pump, Displacement Pump
|
| Type |
Airless Sprayer
|
| Motor Type |
Pneumatic Motor
|
| Wetted Material |
Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Aluminum, Acetal, Polyethylene, Polypropylene, Carbide, Polyurethane
|
| Maximum Fluid Working Pressure (psi) |
3600
|
| Outlet Paint Filter |
60 Mesh Stainless Steel Screen
|
| Pump Sleeve Material |
Stainless Steel
|
| Pump Rod Type |
Carbon Steel
|
| Number of Guns |
1
|
| Mount Type |
Cart Mount
|
| Product Type |
Single Leg
|
| Material Application |
Paints, Pinturas, Peintures , Pinturas, Farben, Verven, Paints, Primers, Imprimantes, couches primaires, Imprimantes, Grundierungen, primers, Primers
|
| Control Type |
Fixed Ratio
|
| Pump Pressure Ratio |
36:1
|
| Lower Configuration |
Stainless Steel;3/4 in. Inlet;Fluid Filter;Drain Valve
|
| Package Options |
XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose
|
| Mix Ratio |
36:1
|
| Maximum Air Inlet Pressure (psi) |
100
|
| Fluid Outlet Thread Gender |
Male
|
| Volume Per Cycle (cm³) |
100
|
| Air Inlet Thread Gender |
Female
|
| Air Inlet Thread Type |
NPT
|
| Air Inlet Size (in) |
1/2
|
