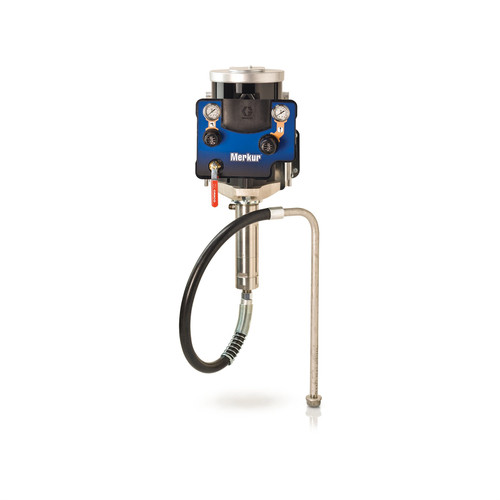

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
UPC Product:
633955375116
Family Code:
FAMXTM
Country of Origin:
US
Unit of Measure:
EA
Height:
20.4 IN
| 51.816 CM
Length:
33.6 IN
| 85.344 CM
Width:
18 IN
| 45.720 CM
Volume:
7.14 FT3
| 0.202 M3
Shipping Weight:
104 LBS
| 47.174 KG
Technical Specifications
| Compatible Material |
Protective Coating
|
| Compatible Replacement Pump |
W36DAS
|
| Convertible |
Non-Convertible
|
| Fluid Inlet Size (in) |
3/4
|
| Fluid Inlet Size (mm) |
19.05
|
| Fluid Inlet Thread Type |
NPT
|
| Fluid Outlet Size (in) |
3/8, 1/4
|
| Fluid Outlet Size (mm) |
9.525;6.35
|
| Fluid Outlet Thread Type |
NPT
|
| Frame Configuration |
Wall Mount
|
| Hose Inlet Diameter (cm) |
0.635
|
| Hose Inlet Diameter (in) |
1/4
|
| Hose Inlet Diameter (mm) |
6.35
|
| Includes |
XTR-5 Spray Gun, Pistolet pulvérisateur XTR-5 , Pistola XTR-5, XTR-5 Spritzpistole, XTR-5 Spuitpistool, Pistola a spruzzo XTR-5, XTR-5 喷枪, XTR-5 Spray Gun, XTR-5 Spray Gun, 5129 XHD Tip, buse 5129 XHD , Boquilla 5129 XHD, 5129 XHD-Düse, 5129 XHD tip, ugello 5129 XHD, 5129 XHD 喷嘴, 5129 XHD Tip, 5129 XHD Tip, Fluid Hose, flexible à fluide , Manguera de fluido, Materialschlauch, vloeistofslang, flessibile del fluido, 流体软管, Fluid Hose, Fluid Hose, Fluid Filter, filtre pour fluide, Filtro de fluido, Materialfilter, vloeistoffilter, filtro del fluido, 流体过滤器, Fluid Filter, Fluid Filter
|
| Inlet Paint Strainer |
8 Mesh, 16 Mesh
|
| Maximum Flow Rate (GPM) |
1.6
|
| Maximum Flow Rate (L/min) |
6
|
| Maximum Sound Pressure Level (dB(A)) |
68.9
|
| Maximum Tip Size (in) |
0.029
|
| Maximum Working Pressure (psi) |
3600
|
| Maximum Working Pressure (kPa) |
24800
|
| Power Source |
Air
|
| Maximum Working Pressure (MPa) |
24.8
|
| Pressure Control Type |
Air Regulator
|
| Model |
Merkur
|
| Maximum Working Pressure (bar) |
248
|
| Weight (kg) |
40
|
| Weight (lb) |
87
|
| Series |
Standard
|
| Pump Type |
Pneumatic Piston Pump
|
| Type |
Airless Sprayer
|
| Motor Type |
Pneumatic Motor
|
| Wetted Material |
Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Aluminum, Acetal, Polyethylene, Polypropylene, Carbide, Polyurethane
|
| Maximum Fluid Working Pressure (psi) |
3600
|
| Outlet Paint Filter |
60 Mesh Stainless Steel Screen
|
| Pump Sleeve Material |
Stainless Steel
|
| Pump Rod Type |
Carbon Steel
|
| Number of Guns |
1
|
| Mount Type |
Wall Mount
|
| Product Type |
Single Leg
|
| Material Application |
Paints, Peintures , Pinturas, Farben, Verven, Vernici, 油漆, Paints, Paints, Primers, couches primaires, Imprimantes, Grundierungen, primers, Primer, 底漆, Primers, Primers
|
| Control Type |
Fixed Ratio
|
| Pump Pressure Ratio |
36:1
|
| Lower Configuration |
Stainless Steel;3/4 in. Inlet;Fluid Filter
|
| Package Options |
XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose
|
| Mix Ratio |
36:1
|
| Maximum Air Inlet Pressure (psi) |
100
|
| Fluid Outlet Thread Gender |
Male
|
| Volume Per Cycle (cm³) |
100
|
| Air Inlet Thread Gender |
Female
|
| Air Inlet Thread Type |
NPT
|
| Air Inlet Size (in) |
1/2
|
