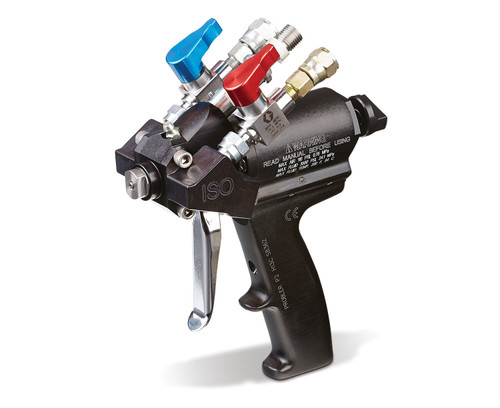

The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
UPC Product:
633955450509
Family Code:
FAMFPA
Country of Origin:
US
Unit of Measure:
EA
Height:
3.6 IN
| 9.144 CM
Length:
12 IN
| 30.480 CM
Width:
9.6 IN
| 24.384 CM
Volume:
.24 FT3
| 0.007 M3
Shipping Weight:
4 LBS
| 1.814 KG
Technical Specifications
| Air Inlet Size (cm) |
0.635
|
| Air Inlet Size (in) |
1/4-18
|
| Air Inlet Size (mm) |
6.35
|
| Air Inlet Thread Gender |
Male
|
| Air Inlet Thread Type |
NPT
|
| Compatible Material |
Foam, Polyurea
|
| Component A Inlet Size (cm) |
1.27
|
| Component A Inlet Size (in) |
1/2-20
|
| Component A Inlet Size (mm) |
12.7
|
| Component A Inlet Thread Type |
UNF
|
| Component B Inlet Size (cm) |
1.11125
|
| Component B Inlet Size (in) |
7/16-18
|
| Component B Inlet Size (mm) |
11.1125
|
| Component B Inlet Thread Type |
UNF
|
| Component Type |
Plural-Component
|
| Fluid Orifice Size (cm) |
0.318
|
| Fluid Orifice Size (in) |
0.086
|
| Fluid Orifice Size (mm) |
3.17
|
| Gun Activation |
Automatic
|
| Gun Type |
Air-Purge
|
| Gun Weight (g) |
1770
|
| Gun Weight (kg) |
1.77
|
| Gun Weight (lb) |
3.9
|
| Gun Weight (oz) |
32.4
|
| Maximum Air Pressure (bar) |
7.6
|
| Maximum Air Pressure (kPa) |
760
|
| Maximum Air Pressure (psi) |
110
|
| Maximum Fluid Pressure (bar) |
241
|
| Maximum Fluid Pressure (kPa) |
24100
|
| Maximum Fluid Pressure (psi) |
3500
|
| Maximum Fluid Temperature (°C) |
93
|
| Maximum Fluid Temperature (°F) |
200
|
| Minimum Air Inlet Pressure (bar) |
6.2
|
| Minimum Air Inlet Pressure (kPa) |
620
|
| Minimum Air Inlet Pressure (psi) |
90
|
| Model |
P2
|
| Overall Height (cm) |
12.1
|
| Overall Height (in) |
4.75
|
| Overall Height (mm) |
121
|
| Overall Length (cm) |
7.9
|
| Overall Length (in) |
3.125
|
| Overall Length (mm) |
79
|
| Overall Width (cm) |
17.4
|
| Overall Width (in) |
6.875
|
| Overall Width (mm) |
174
|
| Pattern Size (in) |
18
|
| Pattern Size (mm) |
457.2
|
| Purge Method |
Air
|
| Series |
Auto
|
| Spray Gun Mix Type |
Impingement
|
| Spray Pattern |
Flat
|
| Type |
Spray Accessory Kit
|
| Wetted Parts |
Stainless Steel, Carbon Steel, Chemically Resistant O-Rings, PTFE
|
| Minimum Flow Rate (kg/min) |
1.4
|
| Minimum Flow Rate (lb/min) |
3
|
| Maximum Fluid Working Pressure (psi) |
3200
|
| Maximum Fluid Working Pressure (MPa) |
22.1
|
| Maximum Fluid Working Pressure (bar) |
221
|
| Maximum Fluid Pressure (MPa) |
24.1
|
| Maximum Flow Rate (kg/min) |
18
|
| Maximum Flow Rate (lb/min) |
40
|
| Maximum Air Pressure (MPa) |
0.76
|
| Maximum Air Inlet Pressure (bar) |
7.6
|
| Maximum Air Inlet Pressure (kPa) |
760
|
| Maximum Air Inlet Pressure (psi) |
110
|
| Minimum Air Inlet Pressure (MPa) |
0.62
|
| Maximum Air Inlet Pressure (MPa) |
0.76
|
| mix_chamber |
05 (.086)
|
| gun_series |
Automatic
|
