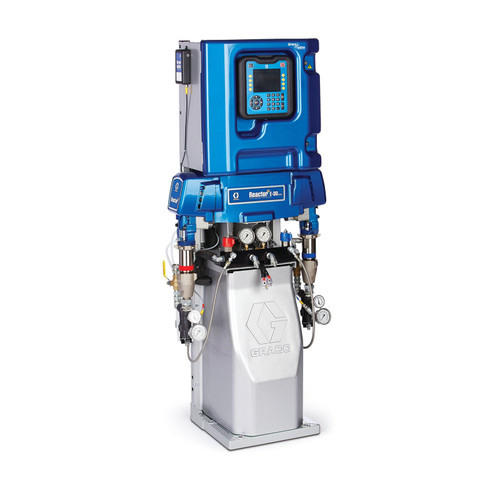

Reactor 2 E-30 Proportioner Package, Fusion CS Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V
Reactor 2 E-30 Proportioner Package, Fusion CS Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V
Reactor 2 E-30 Proportioner Package, Fusion CS Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V
Reactor 2 E-30 Proportioner Package, Fusion CS Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Wordwide Delivery

    Free shipping on all order

Reactor 2 E-30 Proportioner Package, Fusion CS Gun, Heated Hose with Xtreme-Wrap, 15 kW, 230/400 V

(No reviews) Write a Review
$42,110.00
$25,266.00
Add to Cart for Discounted Price!
SKU: CS2011
Adding to cart… The item has been added
Description
Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Specifications

UPC Product:  633955646223
Family Code:  FAMRFP
Country of Origin:  US
Unit of Measure:  EA

Technical Specifications

Amperage (A) 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application Spray Foam
Applicator Type Manual
Compatible Material Plural Components
Component A Inlet Size (in) 1/2
Component A Inlet Size (mm) 12.7
Component A Thread Type JIC
Component B Inlet Size (mm) #10
Component B Outlet Size (in) 5/8
Component B Outlet Size (mm) 15.875
Component B Thread Type JIC
Component Type Two Component
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (in) 3/4
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Flush Type Solvent
Frequency (Hz) 50/60
Gun Type Fusion CS
Hose Length (ft) 50, 10
Hose Length (m) 15, 3
Includes Proportioner, Dosificador, Doseur , Dosificador, Dosiergerät, Doseerapparaat, Proportioner, Fusion CS Gun, pistola Fusion CS, pistolet Fusion CS , Pistola Fusion CS, Fusion CS-Pistole, Fusion CS-pistool, Fusion CS Gun, Heated Hose with Scuff Guard, manguera calefactada con protector antidesgaste, flexible chauffé avec protection anti-abrasion , Manguera calefactada con protector contra roces, Beheizter Schlauch mit Verschleißschutz, verwarmde slang met schuurbescherming, Heated Hose with Scuff Guard, Heated Whip Hose, manguera flexible calefactada, flexible souple chauffé, Manguera flexible calefactada, Beheiztes Peitschenende, verwarmde hulpslang, Heated Whip Hose
Material Application Polyurethane Foam, Espuma de poliuretano, Mousse de polyuréthane, Espuma de poliuretano, Polyurethanschaum, Polyurethaanschuim, Polyurethane Foam
Maximum Flow Rate (kg/min) 13.61
Maximum Flow Rate (lb/min) 30
Maximum Fluid Temperature (°C) 88
Maximum Fluid Temperature (°F) 190
Maximum Mix Ratio 1:1
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (psi) 2000
Overall Depth (cm) 38.1
Overall Depth (in) 15
Overall Depth (mm) 381
Overall Height (cm) 160
Overall Height (in) 63
Overall Height (mm) 1600
Overall Width (cm) 66.8
Overall Width (in) 26.3
Overall Width (mm) 668
Phase 1, 3
Power Rating (HP) 20.52
Power Rating (kW) 15
Power Rating (W) 15300
Power Source Electric
Pressure Type High Pressure
Product Type Plural Component
Sound Power Level (dB(A)) 93.5
Sound Pressure Level (dB(A)) 83.6
Type Proportioner Package
Weight (kg) 161
Weight (lb) 350
Wetted Material Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
Model Reactor 2
Series E-30
Product Series Non-Elite
Voltage (V) 230, 400
Hose Package Single Hose
