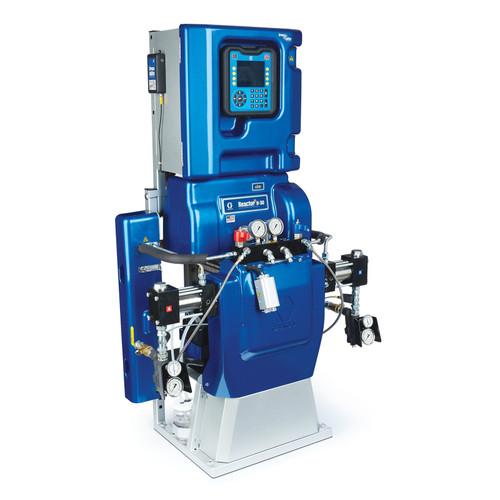

Reactor 2 H-30 Proportioner Package, Fusion PC Gun, Heated Hose with Xtreme-Wrap, 10 kW, 230/400 V

(No reviews) Write a Review
$0.00
Add to Cart for Discounted Price!
SKU: FPH031
Adding to cart… The item has been added
Description
Graco's hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.

Specifications

UPC Product:  769946007589
Family Code:  FAMFPC
Country of Origin:  US
Unit of Measure:  EA

Technical Specifications

Amperage (A) 35 @ 350 to 415 V ac (3-Phase WYE), 46 @ 200 to 240 V ac (3-Phase Delta), 79 @ 200 to 240 V ac (1-Phase)
Application Spray Foam
Applicator Type Manual
Compatible Material Plural Components
Component Type Two Component
Flush Type Solvent
Frequency (Hz) 50/60
Gun Type Fusion PC
Hose Length (ft) 50, 10
Hose Length (m) 15, 3
Includes Proportioner, Dosificador, Doseur , Dosificador, Dosiergerät, Doseerapparaat, Dosatore, Proportioner, Fusion PC Gun, pistola Fusion PC, pistolet Fusion PC , pistola Fusion PC, Fusion PC-Pistole, Fusion PC-pistool, pistola Fusion PC, Fusion PC Gun, Heated Hose with Scuff Guard, manguera calefactada con protector antidesgaste, flexible chauffé avec protection anti-abrasion , manguera calefactada con protector antidesgaste, Beheizter Schlauch mit Verschleißschutz, verwarmde slang met schuurbescherming, tubo riscaldato con protezione esterna, Heated Hose with Scuff Guard, Heated Whip Hose, manguera flexible calefactada, flexible souple chauffé, manguera flexible calefactada, Beheiztes Peitschenende, verwarmde hulpslang, flessibile a frusta riscaldato, Heated Whip Hose
Material Application Polyurethane Foam, Espuma de poliuretano, Mousse de polyuréthane, Espuma de poliuretano, Polyurethanschaum, Polyurethaanschuim, Schiuma poliuretanica, Polyurethane Foam
Maximum Flow Rate (kg/min) 12.7
Maximum Flow Rate (lb/min) 28
Maximum Fluid Temperature (°C) 88
Maximum Fluid Temperature (°F) 190
Maximum Mix Ratio 1:1
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Maximum Working Pressure (MPa) 13.8
Maximum Working Pressure (psi) 2000
Overall Depth (cm) 53
Overall Depth (in) 20.88
Overall Depth (mm) 530
Overall Height (cm) 160.8
Overall Height (in) 63.3
Overall Height (mm) 1608
Overall Width (cm) 83.7
Overall Width (in) 32.96
Overall Width (mm) 837
Phase 1, 3
Power Rating (HP) 13.41
Power Rating (kW) 10
Power Rating (W) 10000
Power Source Hydraulic
Pressure Type High Pressure
Product Type Plural Component
Sound Pressure Level (dB(A)) 82.6
Type Proportioner Package
Weight (kg) 252
Weight (lb) 556
Wetted Material Aluminum, Brass, Chrome, Fluoroelastomer, PTFE, Stainless Steel, UHMWPE, Zinc-Plated Carbon Steel, Carbide
Model Reactor 2
Series H-30
Product Series Non-Elite
Voltage (V) 230, 400
Hose Package Single Hose
