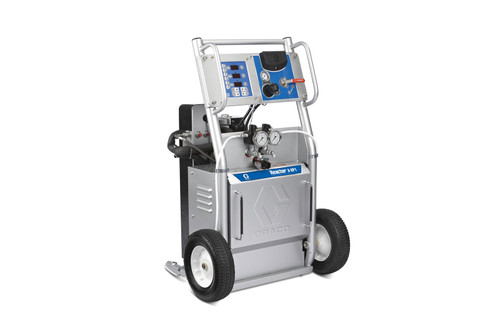

Reactor A-XP1 Proportioner Package, Fusion AP Gun, 230/400 V

Name: Reactor A-XP1 Proportioner Package, Fusion AP Gun, 230/400 V
Brand: Graco
SKU: APY164
Availability: InStock

(No reviews) Write a Review

$0.00

Add to Cart for Discounted Price!

SKU: APY164

Current Stock:

Quantity:

Adding to cart… The item has been added

Description

Description

The Reactor A-XP1 is a Graco-engineered coatings proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates – resulting in better quality coating.

Specifications

UPC Product: 755652318415

Family Code: FAMRFP

Country of Origin: US

Unit of Measure: EA

Technical Specifications

Air Inlet Size (cm)	1.27
Air Inlet Size (in)	1/2
Air Inlet Size (mm)	12.7
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPT
Amperage (A)	26 @ 380 V ac (3-Phase WYE), 45 @ 230 V ac (3-Phase Delta), 56 @ 230 V ac (1-Phase)
Application	Protective Coatings
Applicator Type	Manual
Compatible Material	Plural Components
Component A Inlet Size (in)	3/4
Component A Inlet Size (mm)	19.05
Component A Thread Gender	Female
Component A Thread Type	NPT
Component B Inlet Size (in)	3/4
Component B Inlet Size (mm)	19.05
Component B Thread Gender	Female
Component B Thread Type	NPT
Component Type	Two Component
Flush Type	Solvent
Frequency (Hz)	50/60
Gun Type	Fusion AP
Hose Length (ft)	50, 10
Hose Length (m)	15.2, 3
Includes	Proportioner, Dosificador, Doseur , Dosificador, Dosiergerät, Doseerapparaat, 配比器, Proportioner, Proportioner, Fusion AP Gun, pistola Fusion AP, pistolet Fusion AP , pistola Fusion AP, Fusion AP-Pistole, Fusion AP-pistool, Fusion AP 喷枪, Fusion AP Gun, Fusion AP Gun, Heated Hose, manguera calefactada, flexible chauffé, manguera calefactada, Beheizter Schlauch, verwarmde slang, 加热软管, Heated Hose, Heated Hose
Material Application	Polyurea, Poliurea, Polyrésine, Poliurea, Polyurea, Polyurea, 聚脲, Polyurea, Polyurea
Maximum Air Consumption (SCFM)	32 scfm at 2000 psi
Maximum Air Inlet Pressure (bar)	8.62
Maximum Air Inlet Pressure (kPa)	862
Maximum Air Inlet Pressure (psi)	125
Maximum Flow Rate (cc/min)	5680
Maximum Flow Rate (GPM)	1.5
Maximum Flow Rate (L/min)	5.68
Maximum Fluid Temperature (°C)	88
Maximum Fluid Temperature (°F)	190
Maximum Fluid Viscosity (cP)	1500
Maximum Mix Ratio	1:1
Minimum Fluid Viscosity (cP)	250
Overall Depth (cm)	62.2
Overall Depth (in)	24.5
Overall Depth (mm)	622
Overall Height (cm)	110.5
Overall Height (in)	43.5
Overall Height (mm)	1105
Overall Width (cm)	54.6
Overall Width (in)	21.5
Overall Width (mm)	546
Phase	1, 3
Power Rating (HP)	17.43
Power Rating (kW)	13
Power Rating (W)	13000
Power Source	Air
Pressure Type	High Pressure
Product Type	Plural Component
Sound Power Level (dB(A))	80.1
Sound Pressure Level (dB(A))	70.2
Type	Proportioning Package
Weight (kg)	140.6
Weight (lb)	310
Wetted Material	Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
Model	Reactor
Series	A-XP1
system_includes	Bare
Voltage (V)	230, 400
