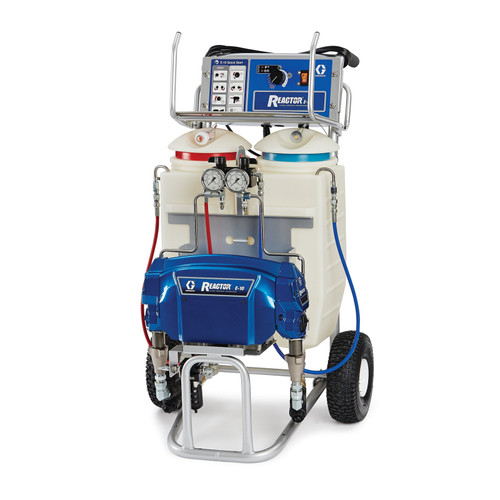

Graco's Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
Specifications
UPC Product:
633955590342
Family Code:
FAMRFP
Country of Origin:
US
Unit of Measure:
EA
Technical Specifications
| Air Inlet Size (cm) |
0.635
|
| Air Inlet Size (in) |
1/4
|
| Air Inlet Size (mm) |
6.35
|
| Air Inlet Thread Type |
Quick-Disconnect Pin
|
| Air Outlet Size (cm) |
0.635
|
| Air Outlet Size (in) |
1/4
|
| Air Outlet Thread Type |
NPSM
|
| Amperage (A) |
15
|
| Application |
Spray Foam
|
| Applicator Type |
Manual
|
| Compatible Material |
Plural Components
|
| Component Type |
Two Component
|
| Flush Type |
Solvent
|
| Frequency (Hz) |
50/60
|
| Gun Type |
Fusion CS
|
| Hose Length (ft) |
35
|
| Hose Length (m) |
10.7
|
| Includes |
Proportioner, Doseur , Dosificador, Dosiergerät, Doseerapparaat, Proportioner, Fusion CS Gun, pistolet Fusion CS , Pistola Fusion CS, CS-Fusion-Pistole, Fusion CS-pistool, Fusion CS Gun, Unheated Hose, flexible non chauffé, Manguera sin calentar, Unbeheizter Schlauch, onverwarmde slang, Unheated Hose
|
| Material Application |
Polyurethane Foam, Mousse de polyuréthane, Espuma de poliuretano, Polyurethanschaum, Polyurethaanschuim, Polyurethane Foam
|
| Maximum Flow Rate (kg/min) |
5.44
|
| Maximum Flow Rate (lb/min) |
12
|
| Maximum Fluid Temperature (°C) |
71
|
| Maximum Fluid Temperature (°F) |
160
|
| Maximum Mix Ratio |
1:1
|
| Maximum Working Pressure (bar) |
140
|
| Maximum Working Pressure (kPa) |
1400
|
| Maximum Working Pressure (psi) |
2000
|
| Overall Depth (cm) |
76.2
|
| Overall Depth (in) |
30
|
| Overall Depth (mm) |
762
|
| Overall Height (cm) |
111.8
|
| Overall Height (in) |
44
|
| Overall Height (mm) |
1118
|
| Overall Width (cm) |
67.3
|
| Overall Width (in) |
26.5
|
| Overall Width (mm) |
673
|
| Phase |
1
|
| Power Rating (HP) |
4.69
|
| Power Rating (kW) |
3.5
|
| Power Rating (W) |
3500
|
| Power Source |
Electric
|
| Pressure Type |
Low Pressure
|
| Product Type |
Plural Component
|
| Sound Pressure Level (dB(A)) |
84.5
|
| Tank Capacity (gal) |
7
|
| Tank Capacity (L) |
26.5
|
| Type |
Proportioner Package
|
| Weight (kg) |
7.2640
|
| Weight (lb) |
160
|
| Wetted Material |
Aluminum, Brass, Carbide, Carbon Steel, Chrome, PTFE, Stainless Steel, UHMWPE
|
| Air Outlet Size (mm) |
6.35
|
| Model |
Reactor
|
| Series |
E-10
|
| Voltage (V) |
120
|
| Hose Package |
Includes Hose
|
Documents
311075EN-ZAE.pdf
