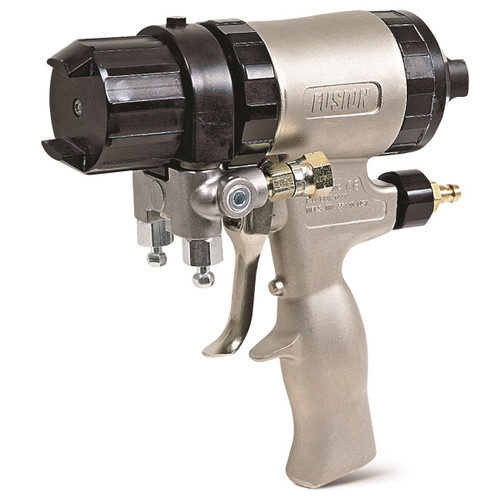

Whether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties – giving you great results at the jobsite.
UPC Product:
633955037540
Family Code:
FAMFPA
Country of Origin:
US
Unit of Measure:
EA
Height:
6 IN
| 15.240 CM
Length:
16.8 IN
| 42.672 CM
Width:
14.4 IN
| 36.576 CM
Volume:
.84 FT3
| 0.024 M3
Shipping Weight:
6 LBS
| 2.722 KG
Technical Specifications
| Compatible Material |
Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
|
| Fluid Orifice Size (cm) |
0.102
|
| Fluid Orifice Size (in) |
0.040
|
| Fluid Orifice Size (mm) |
1.02
|
| Gun Type |
Mechanical-Purge
|
| Gun Weight (g) |
1315
|
| Gun Weight (kg) |
1.32
|
| Gun Weight (lb) |
2.9
|
| Gun Weight (oz) |
46.4
|
| Maximum Air Pressure (bar) |
9
|
| Maximum Air Pressure (kPa) |
900
|
| Maximum Air Pressure (psi) |
130
|
| Maximum Flow Rate @ PSI (lb/min) |
50
|
| Maximum Fluid Pressure (bar) |
241
|
| Maximum Fluid Pressure (kPa) |
24100
|
| Maximum Fluid Pressure (psi) |
3500
|
| Maximum Fluid Temperature (°C) |
93
|
| Maximum Fluid Temperature (°F) |
200
|
| Minimum Air Inlet Pressure (bar) |
5.5
|
| Minimum Air Inlet Pressure (kPa) |
550
|
| Minimum Air Inlet Pressure (psi) |
80
|
| Model |
Fusion MP
|
| Overall Height (cm) |
20.6
|
| Overall Height (in) |
8.1
|
| Overall Height (mm) |
206
|
| Overall Length (cm) |
19.3
|
| Overall Length (in) |
7.6
|
| Overall Length (mm) |
193
|
| Overall Width (cm) |
7.9
|
| Overall Width (in) |
3.1
|
| Overall Width (mm) |
79
|
| Pattern Size (in) |
8 in @ 24 in from target
|
| Series |
Direct Impingement
|
| Spray Pattern |
Round
|
| Type |
Spray Gun
|
| Sound Power Level (dB(A)) |
79.9
|
| Sound Pressure Level (dB(A)) |
70
|
| Maximum Fluid Pressure (MPa) |
24.1
|
| Maximum Air Pressure (MPa) |
0.9
|
| Maximum Air Inlet Pressure (bar) |
9
|
| Maximum Air Inlet Pressure (kPa) |
900
|
| Maximum Air Inlet Pressure (psi) |
130
|
| Minimum Air Inlet Pressure (MPa) |
0.55
|
| Maximum Air Inlet Pressure (MPa) |
0.9
|
| Impingement Type |
Direct Impingement (DI)
|
| mix_module |
.035
|
